Particular point

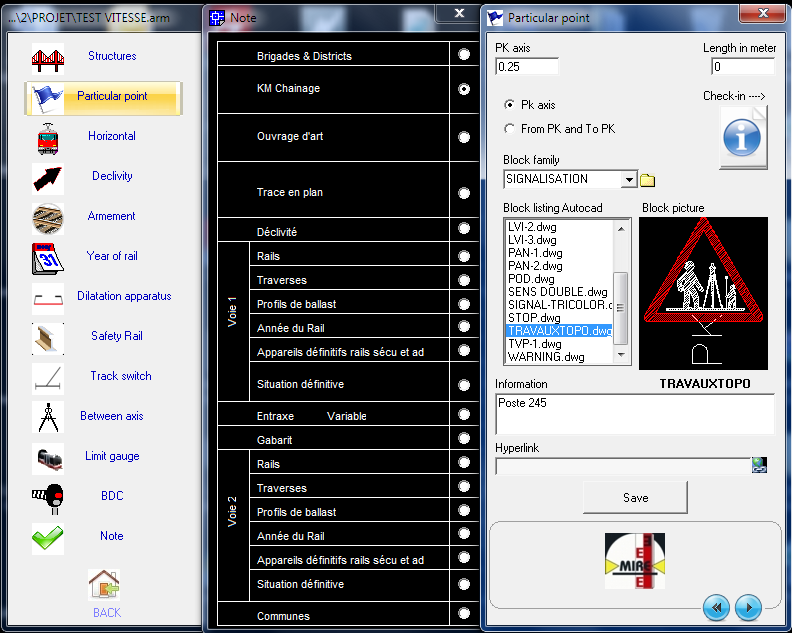

Indicate the specific point of Pk axis or early PK and PK end.
Then choose the block that will appear on the diagram in the left list.

You can add or modify blocks in the library that comes with the software.

The "information" is optional.

The function  allows you to link to your element links "hyperlink" in AutoCAD.
For example you can link to another schema, or to a dwg, PDF, Word, etc ... or even a jpeg image, gifs, etc. ....


Click Save new item particular to validate your entry.
