Declivity

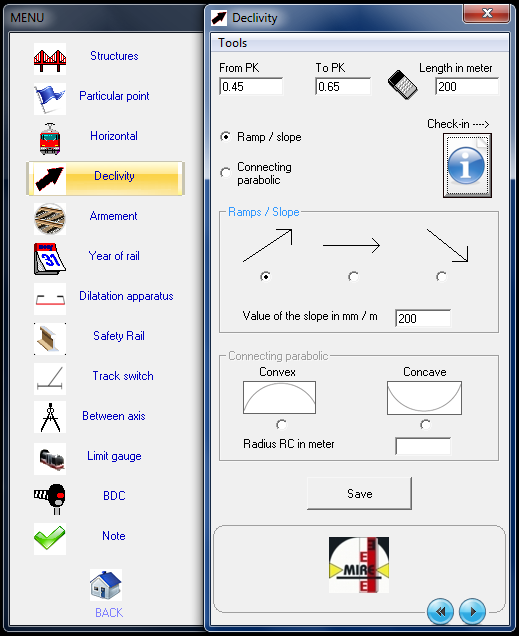

Enter information about the geometry (Pk beginning Pk end, length). Only 2 fields are required, and then click to calculate the third information.


Choose the case of a slope / ramp or spiral.
In the case of a ramp, select the down arrow and specify the value of the slope.
In the case of a ramp, select the up arrow and specify the value of the slope.
In the case of a flat, select the horizontal arrow, the value of the gradient is automatically 0.

In the case of a spiral, indicate whether it is concave or convex and specify its value in meters.







               To validate your entry, click Save this item.






Upload declivity Land XML




Click on Tools and then Import a file and select Land XML.

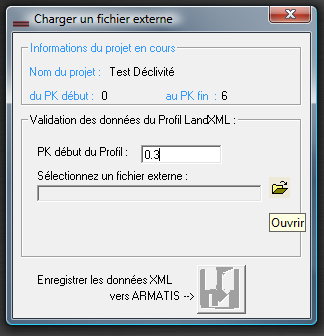

The next dialog lets you select an external file.


          1. Enter a PK early reference, or to start drawing.
          2. Click to select an external file.

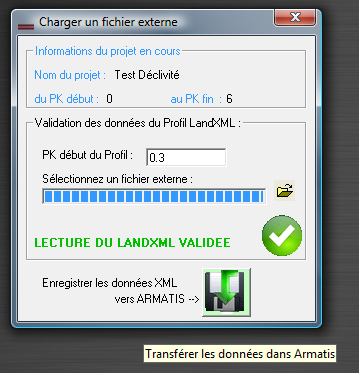

          1. Once the file is validated by the system, click to save the data to the database ARMATIS.
