Switch track

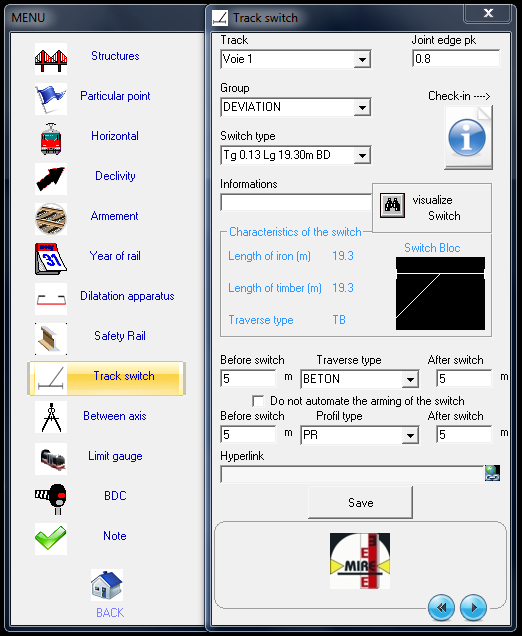

Choose the path of the device, its type, the device Pk his seal tip.

The context information useful to remind you the length of iron, wood and type of ties used for this device.
Automatically, the ties before and after device, so that the ballast is added to the schema.
If you do not want to reveal this information, check "Do not automate the arming of the device.

The function  allows you to link to your element links "hyperlink" in AutoCAD.
For example you can link to another schema, or to a dwg, PDF, Word, etc ... or even a jpeg image, gifs, etc. ....

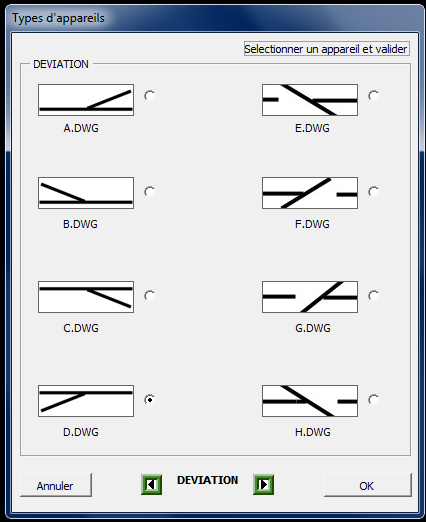

By clicking, a window opens to remind you the schematic of this device.
