Annotations

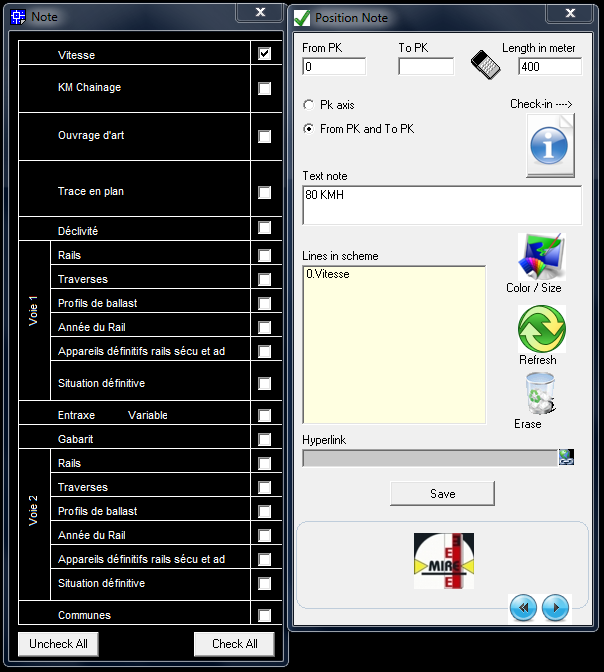

You can insert each line of the strip, an annotation
and choose the line color and text and its size.

Annotations can be made either to the axis or early Pk beginning and PK end.
Choose the online information and then click save to complete the entry

The function allows you to link to your element links "hyperlink" in AutoCAD.
For example you can link to another schema, or to a dwg, PDF, Word, etc ... or even a jpeg image, gifs, etc. ....
